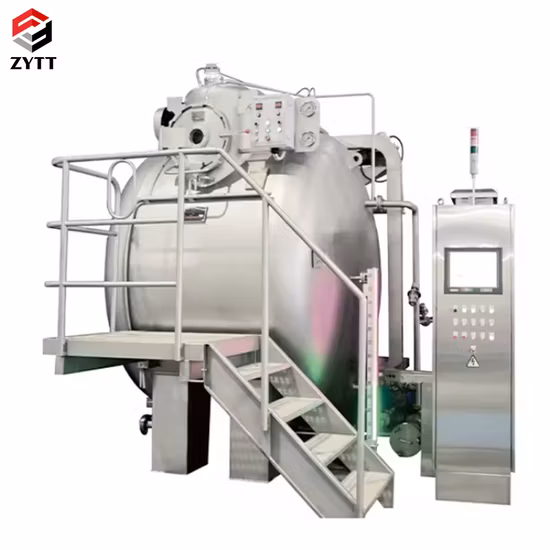

Hthp Fabric Dyeing Machine Textile Machine

Basic Info

Product Description

Features:

Features:
1) It is suitable for bleaching, refining, dyeing, washing and post-treatment of gauze yarn, embroidery thread, silk and nylon hank or tape.
2) The machine uses a specially designed low-power, low head, large flow axial flow pump. High temperature does not affect iBS characteristics.
3) The new weir-flow injection tube, dyeing tube and turning yarn shift tube into one, the dye is absolutely no bite yarn winding or knotting phenomenon, easy to reverse the staining, the loss rate is low.
4) Special design water regulator visual yarn count and the yarn count, different types, the size of any regulation of water.
5) Structure optimization, bath ratio is small, saving raw materials and reduce cosBS.

Standard structure:

1) Body: high-quality high-corrosion-resistant stainless steel
2) Spray tube: high corrosion-resistant stainless steel plate manufacturing
3) High-performance stainless steel axial flow pump
4) Reliable PLC proBSam controller
5) Automatic opening system
6) Machine design of multiple seBS of security operating system
7) Easy to install yarn, yarn, cleaning nozzle tools

Technical data:
1) Design pressure: 0.44Mpa
2) Maximum working pressure: 0.4Mpa
3) Design temperature: 140 ºC
4) Maximum operating temperature: 135 ºC
5) Effective length of hanging yarn: 1200-1500mm
6) Suitable length of hank: 820mm
7) Bath ratio: 1: 8-12
8) Heating rate: 20 ºC ~ 130 ºC for about 30 minutes (saturated steam pressure value of 0.7Mpa)
9) Cooling rate: 130 ° C to 80 ° C for about 20 minutes
